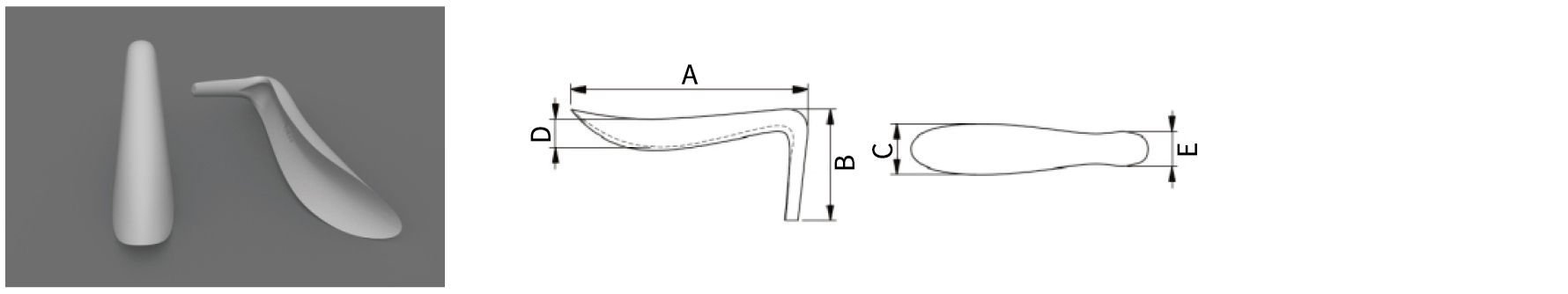

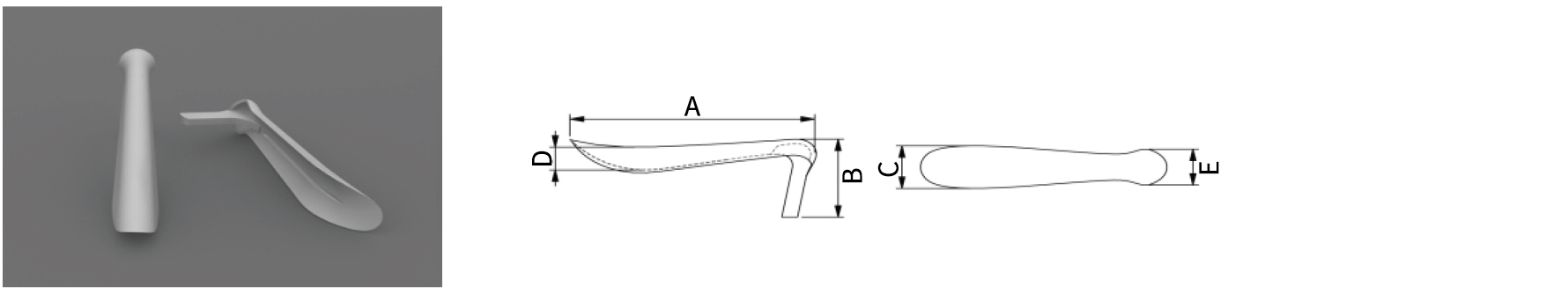

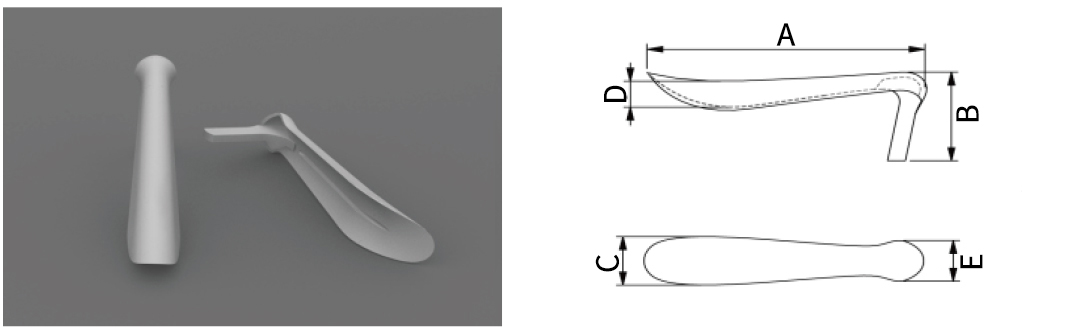

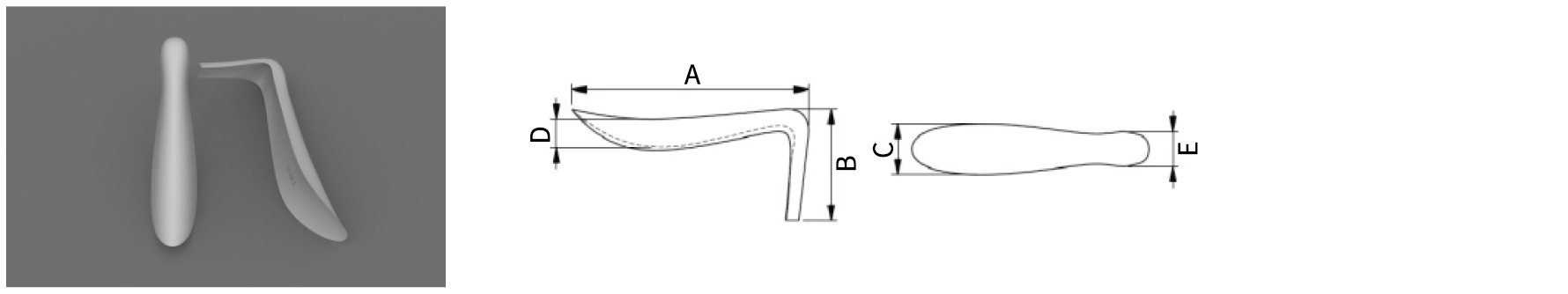

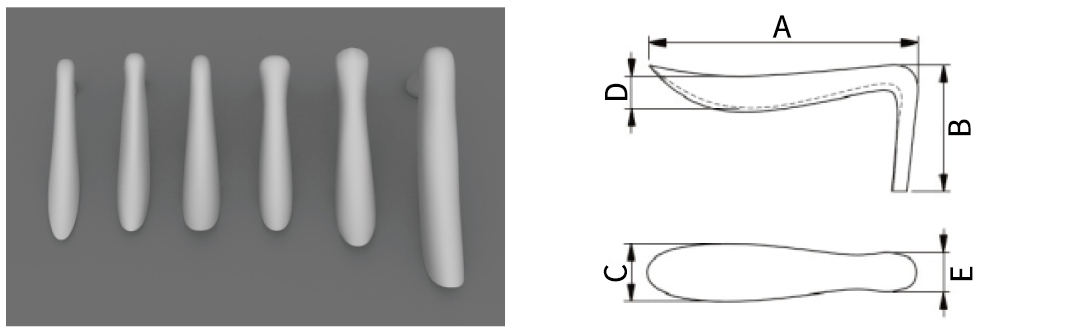

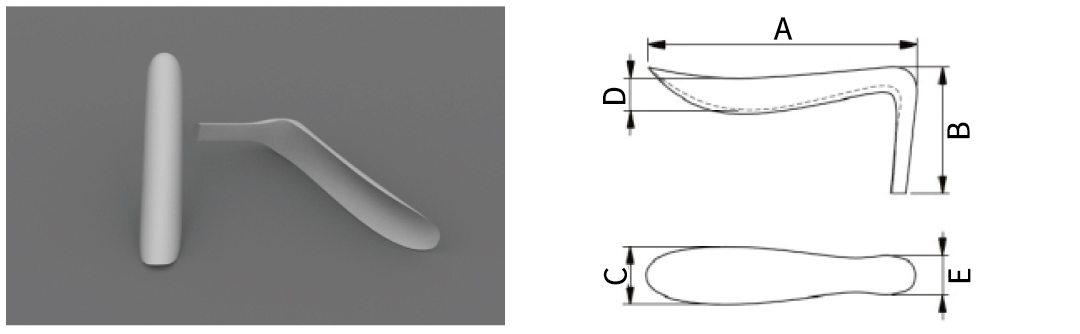

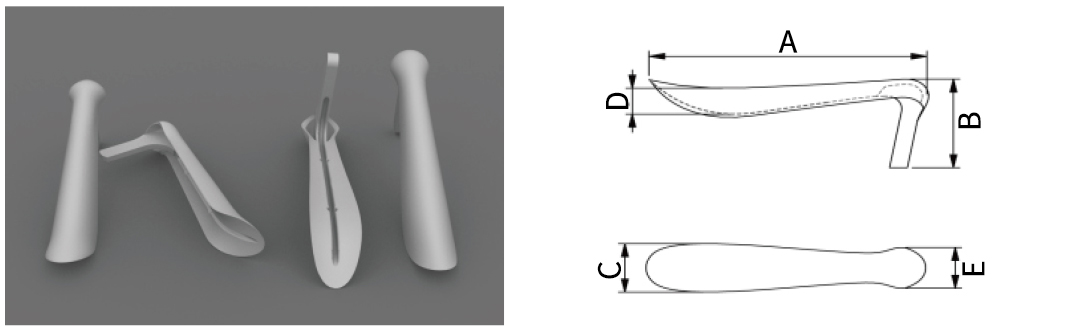

规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
LA50 | 47.5mm | 23.5mm | 10mm | 4.5mm | 6.5mm |
LA55 | 53.3mm | 23mm | 11.5mm | 5mm | 6mm |
LA60 | 60mm | 23.5mm | 11.2mm | 5mm | 6mm |

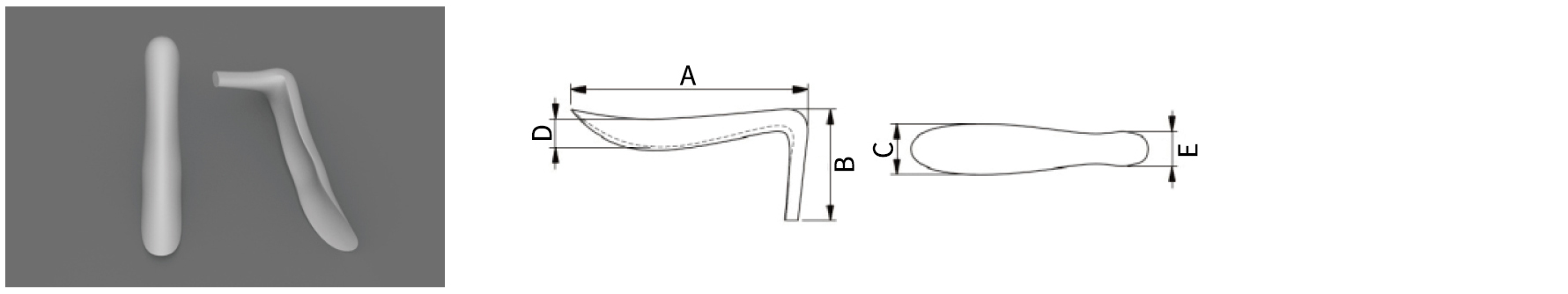

规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
LD50 | 50mm | 22mm | 12mm | 5.5mm | 7mm |
LD55 | 55mm | 21mm | 12.5mm | 6mm | 8.5mm |
规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
LM55 | 55.5mm | 23.5mm | 10.5mm | 5mm | 9.5mm |

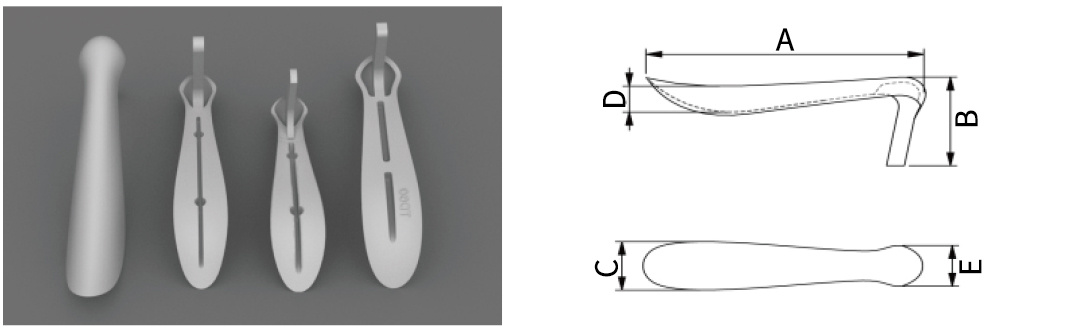

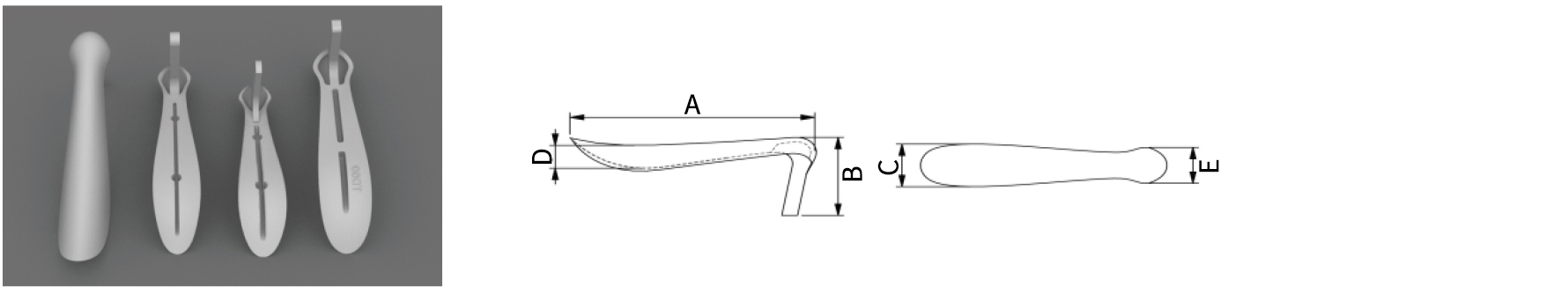

规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
L30-355 | 55mm | 20mm | 9mm | 3mm | 6mm |
L30-455 | 54mm | 24mm | 9.8mm | 4mm | 7mm |
L30-555 | 57mm | 21mm | 11.4mm | 5mm | 6mm |
L30-650 | 50mm | 23mm | 10mm | 6mm | 9.5mm |
L30-670 | 70mm | 35mm | 12.5mm | 5.5mm | 9.8mm |
L30-760 | 60mm | 24mm | 12.2mm | 7.5mm | 10.4mm |

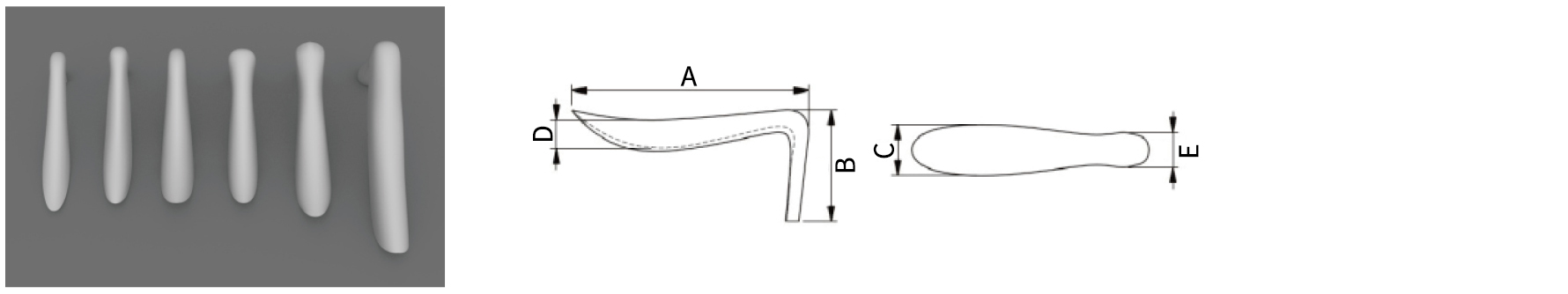

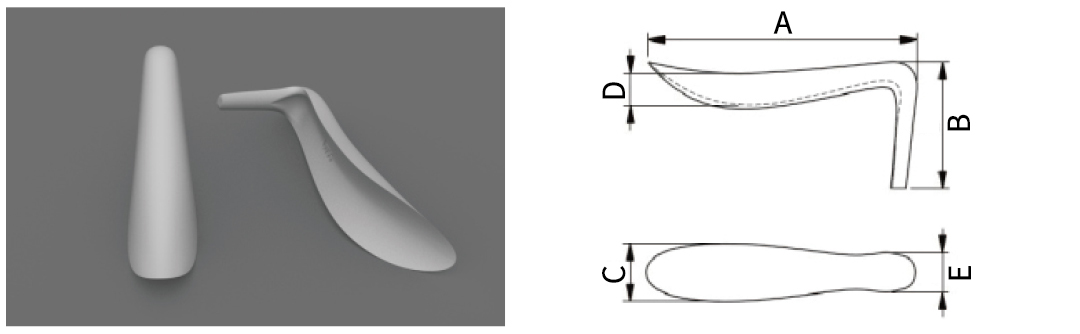

规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
T50 | 46.5mm | 22mm | 9mm | 4.5mm | 10mm |
T55 | 53.5mm | 22.5mm | 9.2mm | 5mm | 9.5mm |
T60 | 58mm | 21mm | 9.6mm | 4mm | 9.5mm |
T55-1 | 54.5mm | 22.2mm | 9.5mm | 6mm | 10.5mm |
T60-1 | 59mm | 21.5mm | 9.5mm | 6mm | 10.5mm |

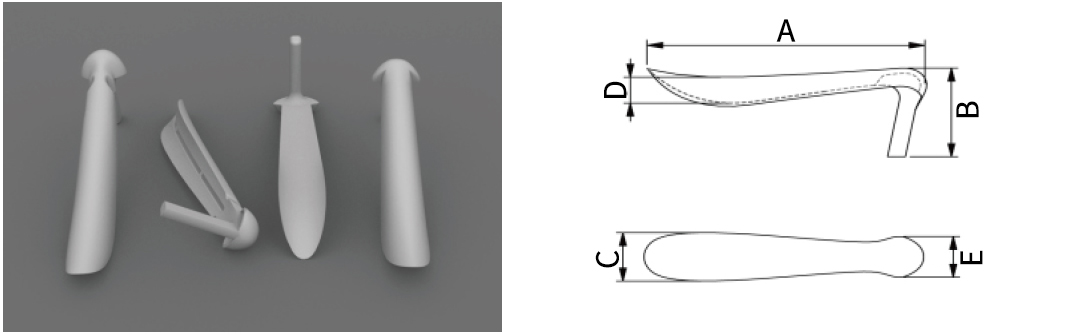

规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
TA50 | 48.5mm | 21mm | 10mm | 4.5mm | 8.5mm |
TA55 | 55mm | 24mm | 10mm | 5mm | 9mm |
规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
TB55 | 53.5mm | 24.5mm | 8.5mm | 5mm | 8mm |
TB60 | 58.5mm | 25.2mm | 9.8mm | 5mm | 9mm |
规格 | A(±3)mm | B(±2)mm | C(±2)mm | D(±2)mm | E(±2)mm |
TD50 | 47.5mm | 21mm | 11.8mm | 6mm | 8.5mm |
TD55 | 54.5mm | 23.5mm | 11.6mm | 6mm | 9mm |
TD60 | 60mm | 24mm | 13mm | 7mm | 11mm |

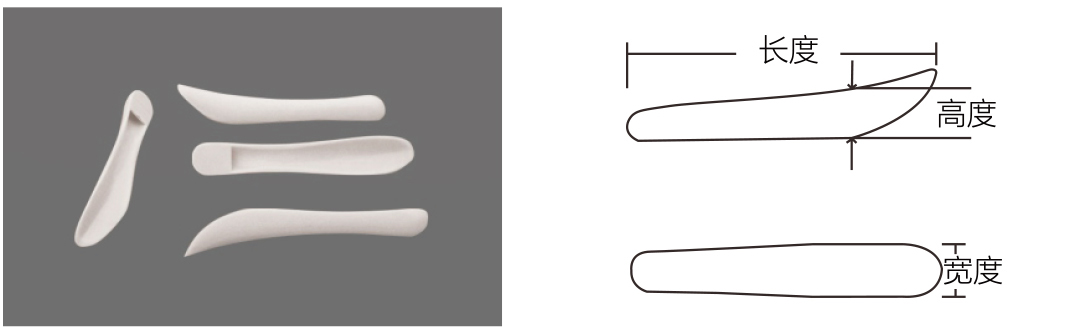

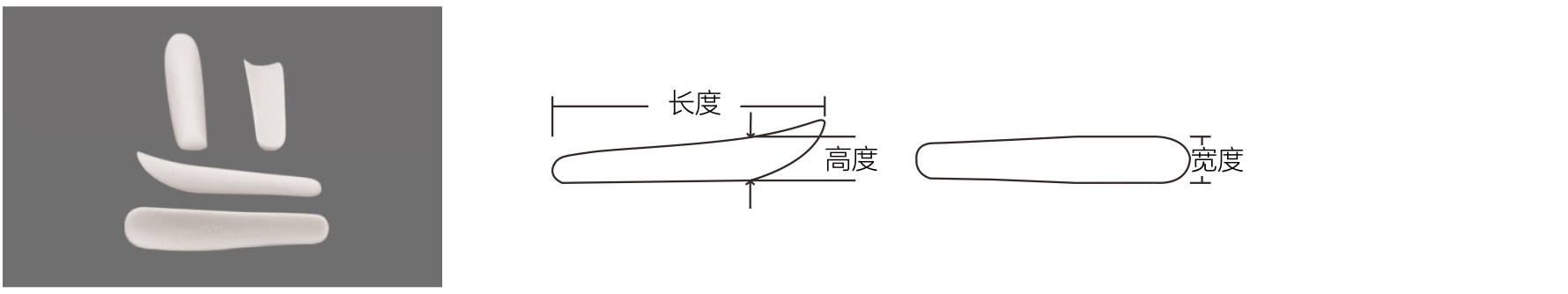

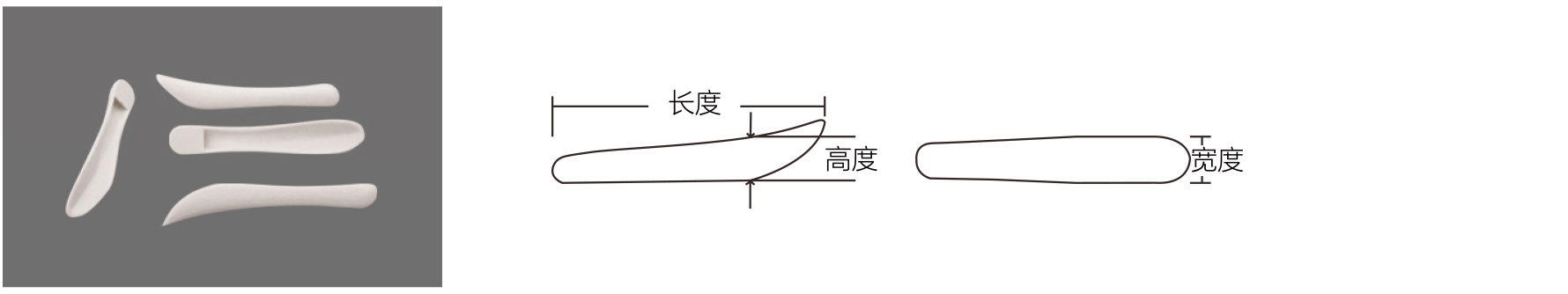

规格 | 长度(±3)mm | 高度(±2)mm | 宽度(±2)mm |
IA50 | 43.5mm | 3.2mm | 9mm |
规格 | 长度(±3)mm | 高度(±2)mm | 宽度(±2)mm |
IB50 | 50.5mm | 4.8mm | 9mm |

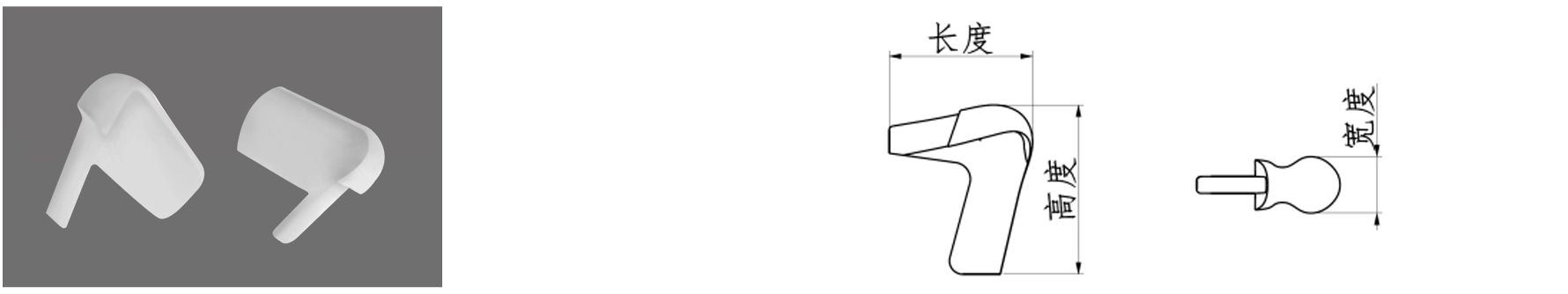

规格 | 长度(±3)mm | 高度(±2)mm | 宽度(±2)mm |
IT-10 | 27mm | 22mm | 9.7mm |
IT-11 | 21.2mm | 25.2mm | 8.4mm |
ID50 | 50mm | 3.6mm | 11.2mm |
ID55 | 55mm | 5mm | 12mm |

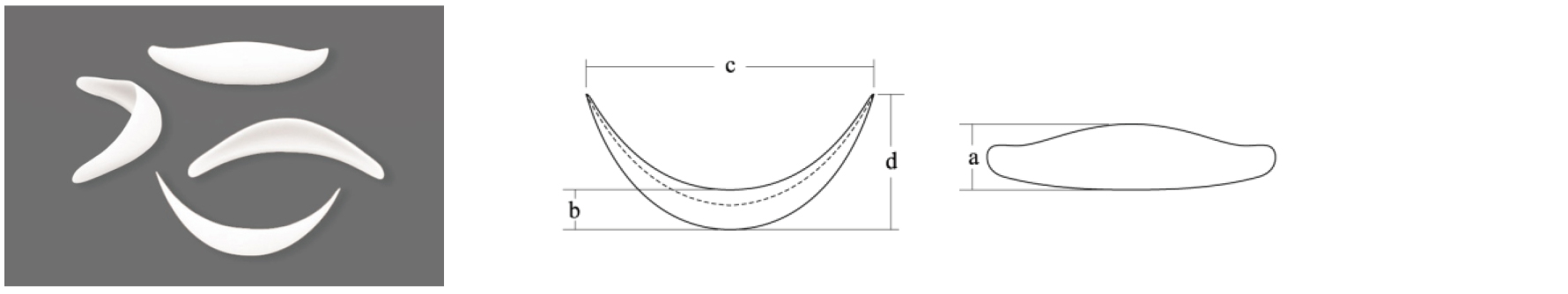

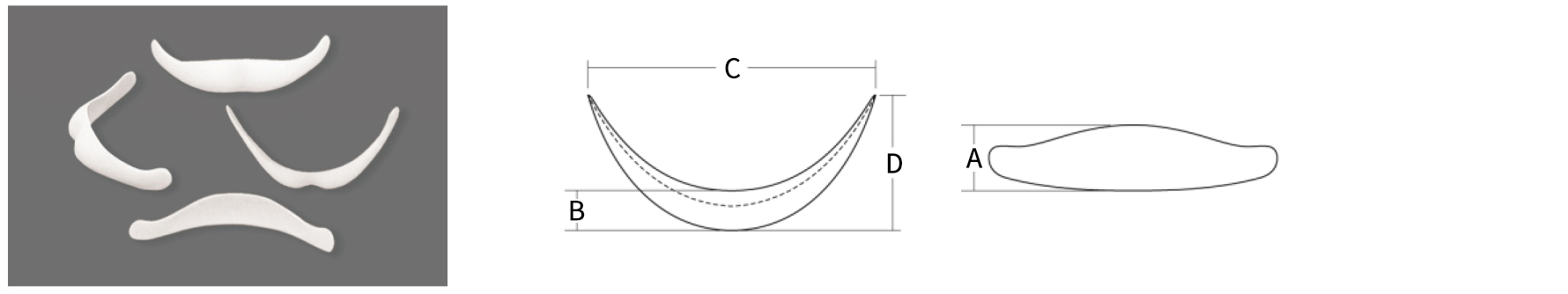

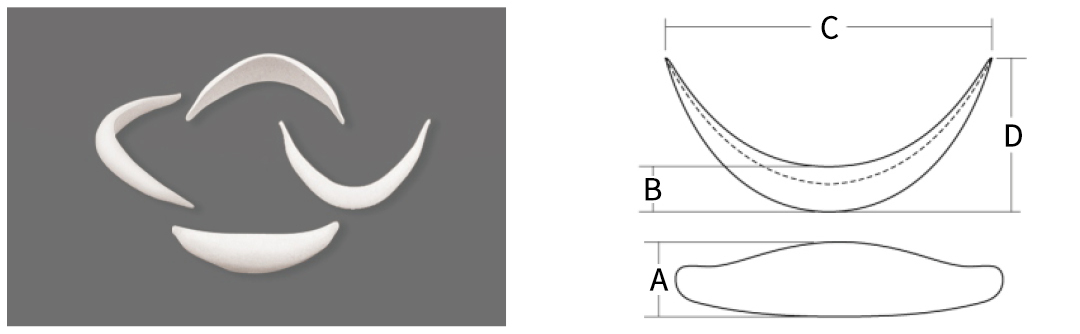

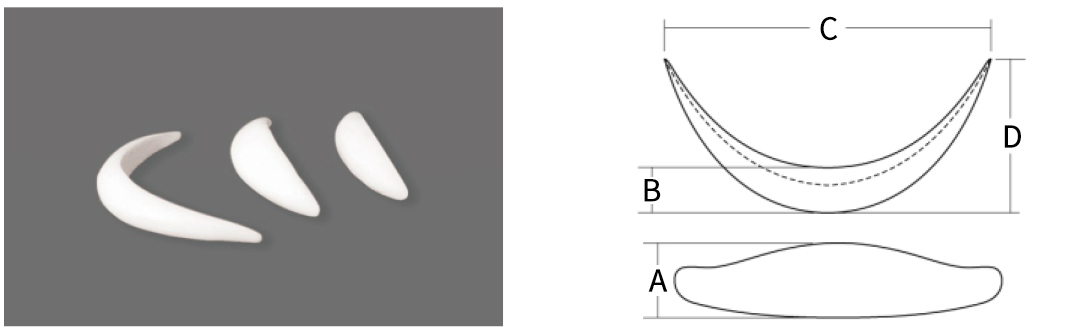

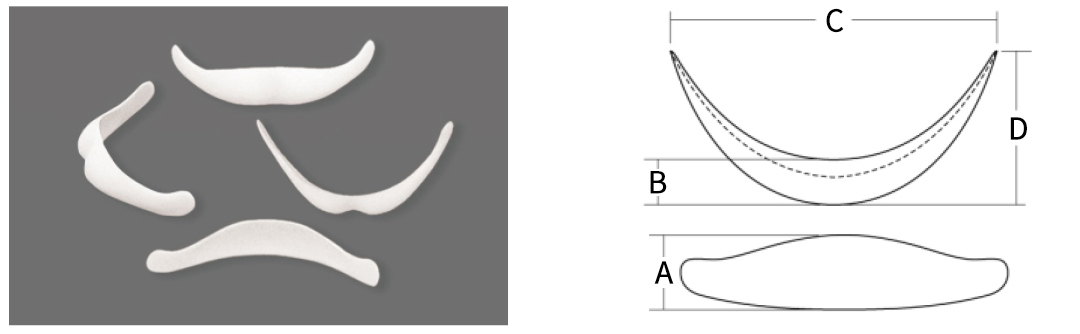

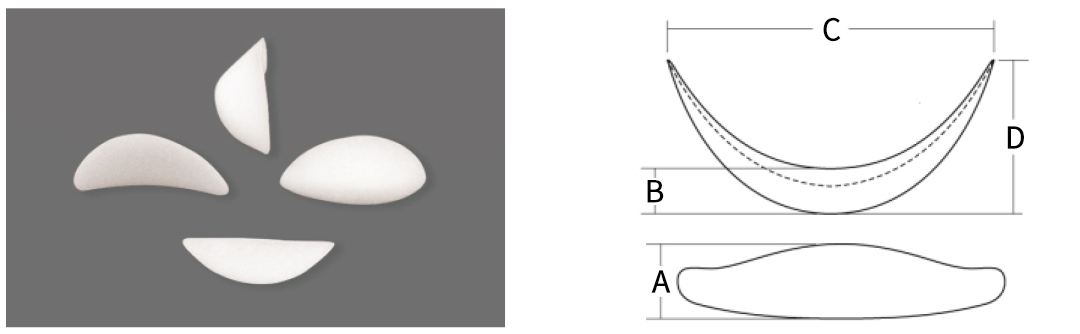

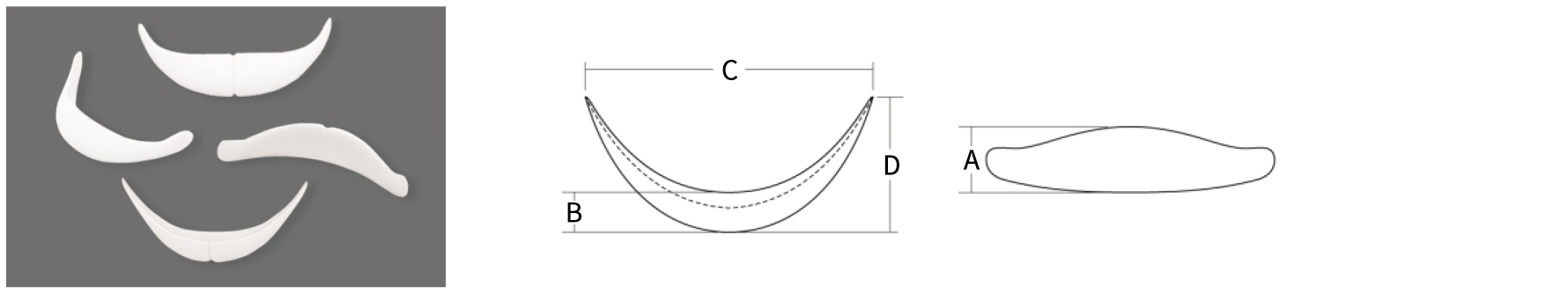

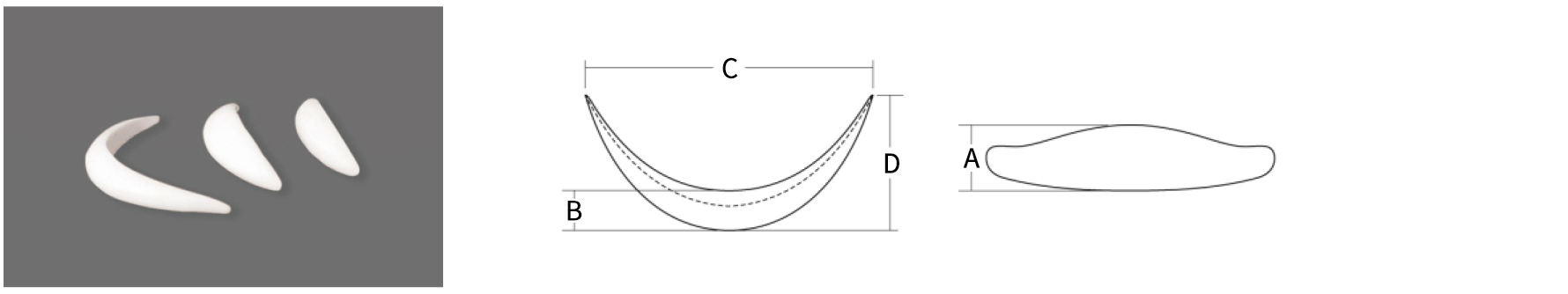

规格 | A(±2)mm | B(±1.5)mm | C(±3)mm | D(±3)mm |
C1 | 11.8mm | 6mm | 44mm | 14mm |
C2 | 13.8mm | 7mm | 49mm | 20mm |
规格 | A(±2)mm | B(±1.5)mm | C(±3)mm | D(±3)mm |
C3 | 13mm | 7mm | 55mm | 39mm |
规格 | A(±2)mm | B(±1.5)mm | C(±3)mm | D(±3)mm |
C4 | 21.8mm | 9.5mm | 50mm | 16mm |
规格 | A(±2)mm | B(±1.5)mm | C(±3)mm | D(±3)mm |
C5 | 14mm | 7.5mm | 65mm | 30mm |
规格 | A(±2)mm | B(±1.5)mm | C(±3)mm | D(±3)mm |
C6 | 14.2mm | 9.5mm | 69mm | 33mm |
规格 | A(±2)mm | B(±1.5)mm | C(±3)mm | D(±3)mm |
C7 | 15.5mm | 8.8mm | 70mm | 27mm |

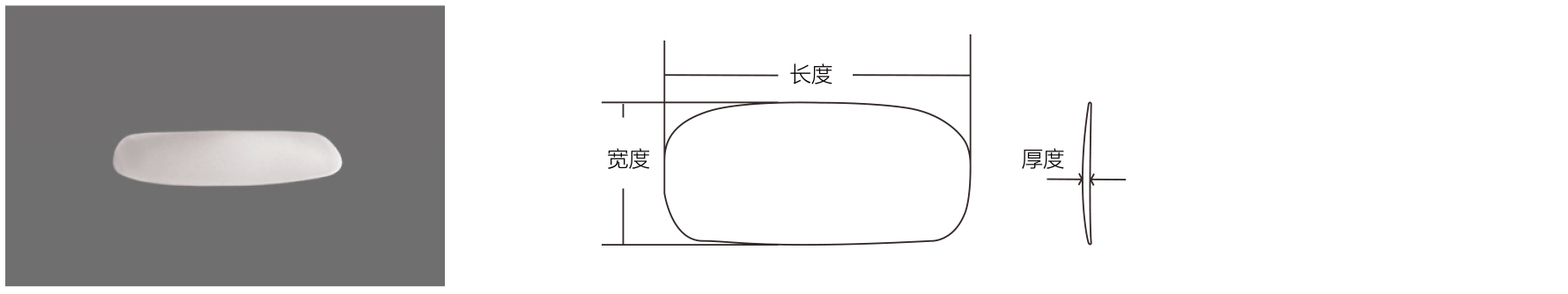

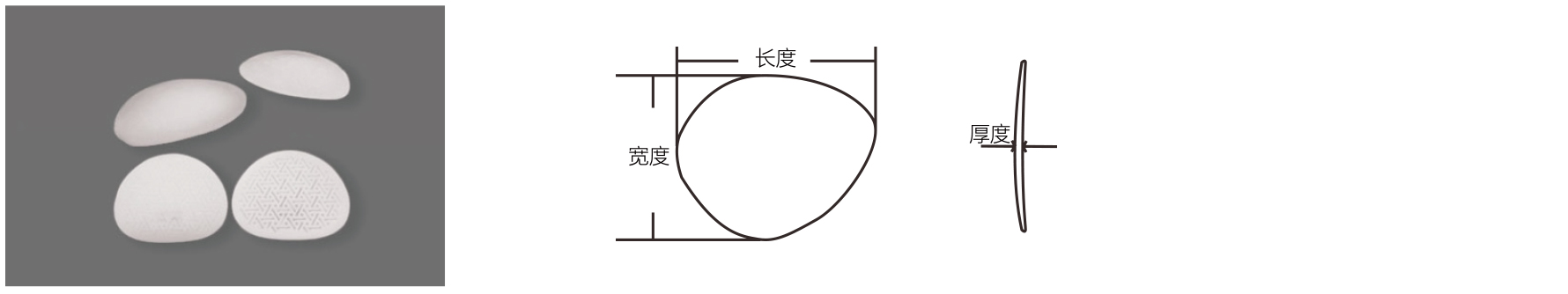

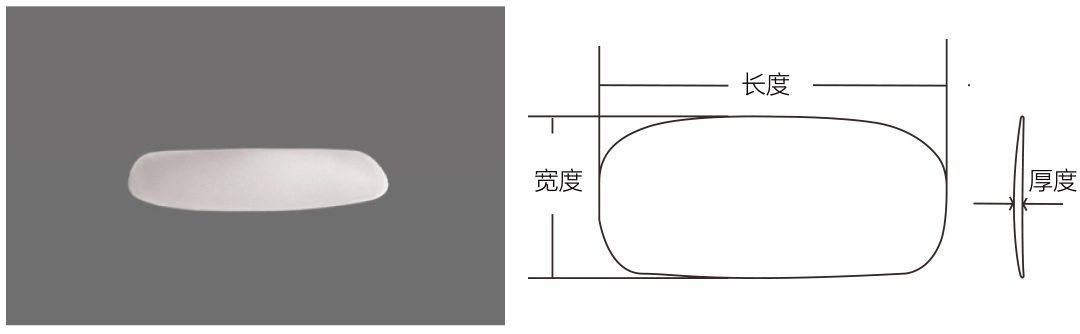

规格 | 长度(±2)mm | 宽度(±2)mm | 厚度(±2)mm |
P1 | 44mm | 23mm | 6.5mm |
规格 | 长度(±2)mm | 宽度(±2)mm | 厚度(±2)mm |
P2 | 135mm | 60mm | 3mm |
规格 | 长度(±2)mm | 宽度(±2)mm | 厚度(±2)mm |
P3 | 66mm | 52mm | 4.5mm |
